刷卡呼梯功能及參數說明
2017-10-28
Call elevator control
一、 產品特點
Product Features
有權限的卡刷卡則登記啟動進入電梯簡稱刷卡呼梯，可選配密碼式讀頭，忘記帶卡則輸入密碼。可與多奧停車管理/門禁/考勤/智能通道/消費/在線巡更等智能一卡通
Through the call elevator controller, ’up and down button’ of each floor are controlled;after it is effective to read the card,the elevator can becalled by button,and it is invalid if no card,invalid card read and elevator calling by button,to prevent unauthorized users calling the elevator,there by in creasing the security of the elevator and preventing the elevator idling. and DUOAO parking management / access control / attendance / smart channel / consumer / Patrol and other smart card.

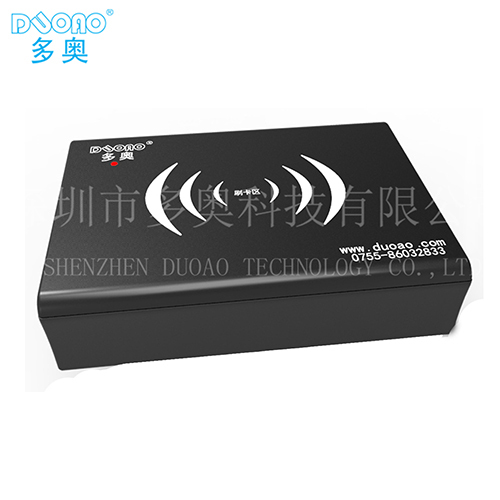

電梯刷卡器" width="250" height="250" />
二、 技術參數
Perfomance parameters
1、 工作電壓：DC12V-24V/1A
2、 工作環境：-30℃-75℃
3、 通訊方式：RS485 TCP/IP CAN
4、 最大用戶數：無限制
5、 支持卡片類型：IC卡、EM卡、ID卡、T5557卡、CPU卡等
6、 支持生物識別讀頭：指紋、靜脈識別、掌紋識別、虹膜、面部識別等
7、 連接方式：無源干接點
1 ,An operating voltage: DC12V-24V/1A
2, the working environment: -30 ℃ -75 ° C
3, means of communication: RS485 TCP / IP CAN
4, the maximum number of users: unlimited
5, support the cards types: IC card, EM card, ID card, T5557 card, CPU card, etc.
6, to support biometric reading head: fingerprints, vein recognition, palm recognition, iris, facial recognition, etc.
7, the connection mode: passive dry contact

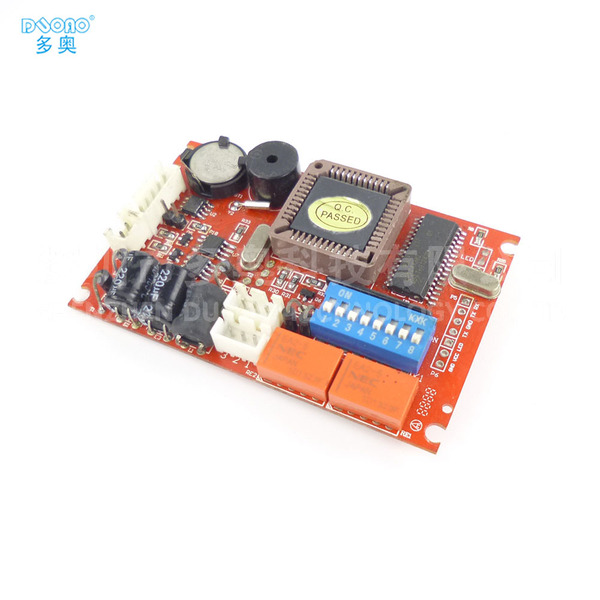

呼梯控制板
Call elevator controller
產品型號：DAIC-DT-HTMB
Product models
規格：85*75
Size
顏色：紅
Color
